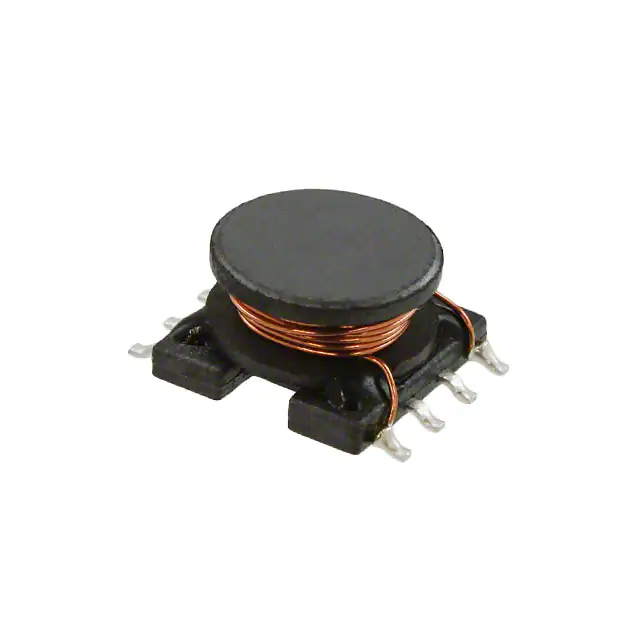

| Part Number | SDR0906-2R7ML | SDR0906-4R7ML | SDR0906-2R2ML |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 2.7 µH | 4.7 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.5 A | 3 A | 4 A |
| Current - Saturation (Isat) | 6.5A | 4.8A | 6.7A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 40mOhm Max | 50mOhm Max | 30mOhm Max |
| Q @ Freq | 30 @ 7.96MHz | 27 @ 7.96MHz | 30 @ 7.96MHz |
| Frequency - Self Resonant | 84MHz | 55MHz | 105MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
