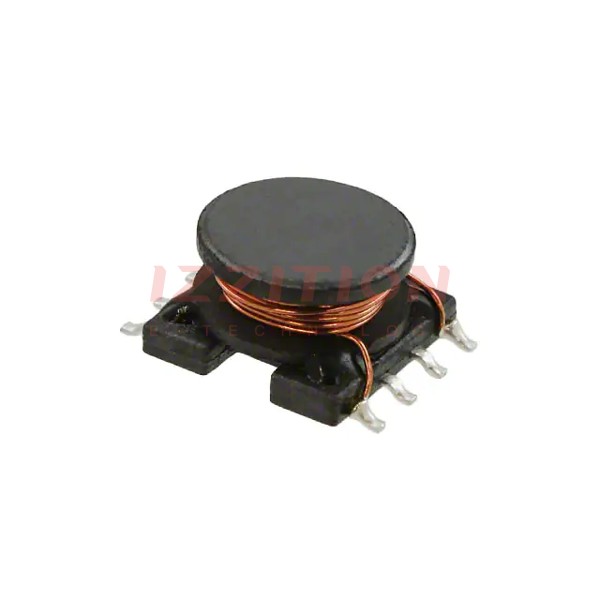

| Part Number | SDR0906-272KL | SDR0906-472KL | SDR0906-222KL | SDR0906-270KL | SDR0906-271KL |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.7 mH | 4.7 mH | 2.2 mH | 27 µH | 270 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 130 mA | 90 mA | 140 mA | 1.4 A | 550 mA |
| Current - Saturation (Isat) | 230mA | 160mA | 230mA | 2.2A | 760mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 9Ohm Max | 15Ohm Max | 8Ohm Max | 150mOhm Max | 1Ohm Max |
| Q @ Freq | 90 @ 252kHz | 86 @ 252kHz | 94 @ 252kHz | 35 @ 2.52MHz | 20 @ 796kHz |
| Frequency - Self Resonant | 1MHz | 1MHz | 2MHz | 15MHz | 5MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
