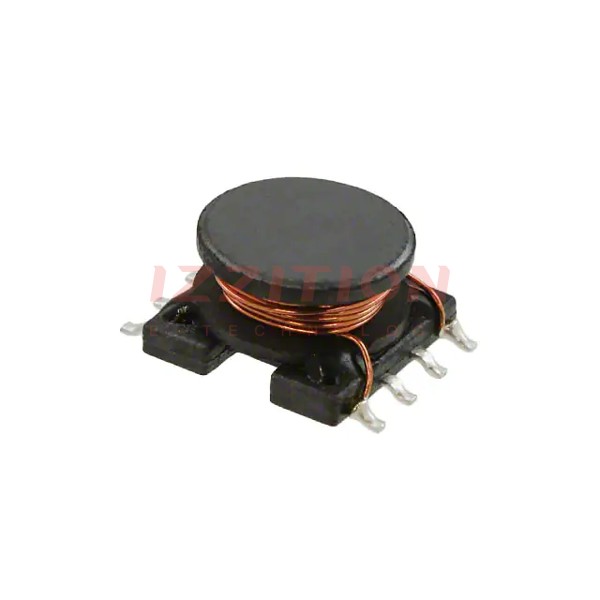

| Part Number | SDR0906-150ML | SDR0906-180ML | SDR0906-100ML | SDR0906-120ML |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 18 µH | 10 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.9 A | 1.8 A | 2.1 A | 2 A |
| Current - Saturation (Isat) | 2.9A | 2.4A | 3.2A | 3.1A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 110mOhm Max | 120mOhm Max | 90mOhm Max | 100mOhm Max |
| Q @ Freq | 35 @ 2.52MHz | 35 @ 2.52MHz | 35 @ 2.52MHz | 35 @ 2.52MHz |
| Frequency - Self Resonant | 22MHz | 19MHz | 25MHz | 23MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
