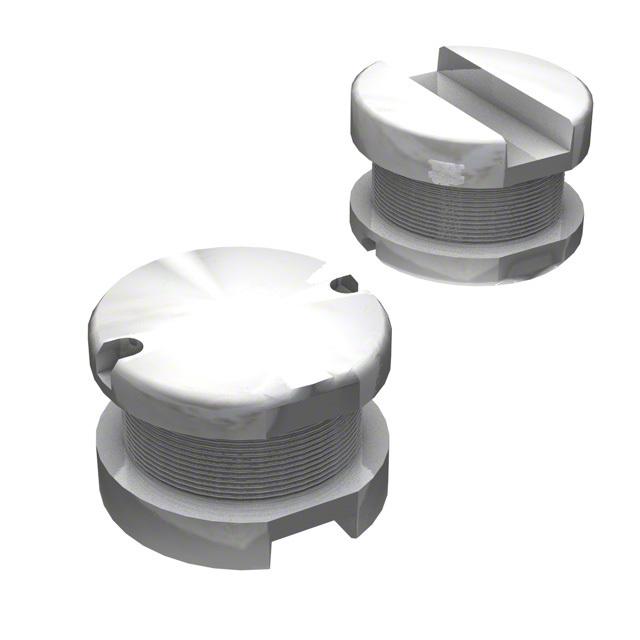

| Part Number | SDR0805-3R9ML | SDR0805-3R3ML |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.9 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 4.4 A | 4.5 A |
| Current - Saturation (Isat) | 5.7A | 6.3A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 20mOhm Max | 20mOhm Max |
| Q @ Freq | 32 @ 7.96MHz | 32 @ 7.96MHz |
| Frequency - Self Resonant | 45MHz | 55MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.307" L x 0.307" W (7.80mm x 7.80mm) |
| Height - Seated (Max) | 0.209" (5.30mm) | 0.209" (5.30mm) |
