Please send RFQ , we will respond immediately.

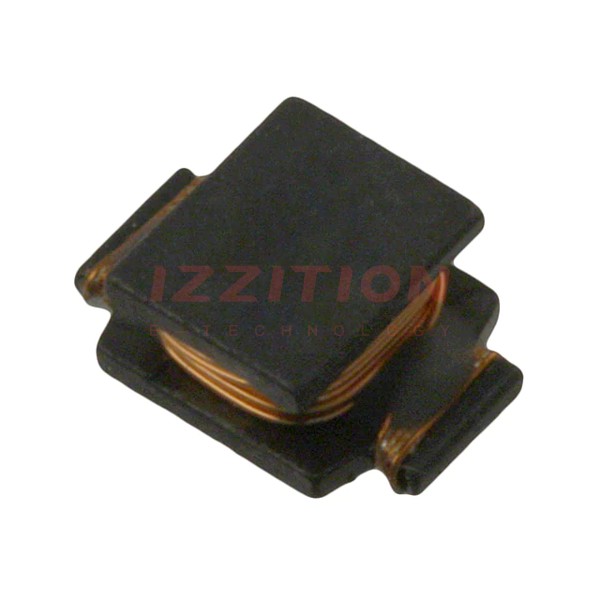

| Part Number | SDR0703-151ML | SDR0703-151KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 150 µH | 150 µH |
| Tolerance | ±20% | ±10% |
| Current Rating (Amps) | 250 mA | 250 mA |
| Current - Saturation (Isat) | 340mA | 340mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2Ohm Max | 2Ohm Max |
| Q @ Freq | 30 @ 796kHz | 30 @ 796kHz |
| Frequency - Self Resonant | 9MHz | 9MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.256" L x 0.177" W (6.50mm x 4.50mm) |
| Height - Seated (Max) | 0.106" (2.70mm) | 0.106" (2.70mm) |
