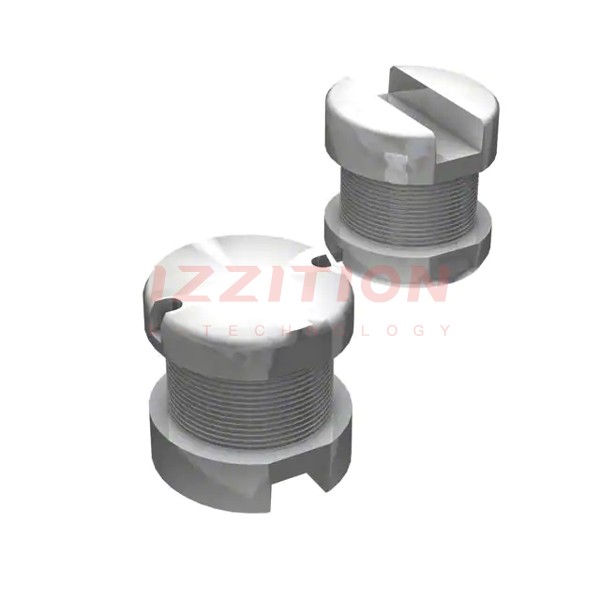

| Part Number | SDR0604-2R5ML | SDR0604-2R7ML | SDR0603-2R5ML | SDR0604-1R5ML | SDR0604-2R2ML |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.5 µH | 2.7 µH | 2.5 µH | 1.5 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | - | 2.3 A | 2.35 A | 3.6 A | 2.8 A |
| Current - Saturation (Isat) | - | 3.8A | 2.7A | 6.1A | 5.1A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | - | 60mOhm Max | 50mOhm Max | 30mOhm Max | 60mOhm Max |
| Q @ Freq | - | 22 @ 7.96MHz | 21 @ 7.96MHz | 32 @ 7.96MHz | 33 @ 7.96MHz |
| Frequency - Self Resonant | - | 65MHz | 74MHz | 108MHz | 79MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.154" (3.90mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
