Please send RFQ , we will respond immediately.

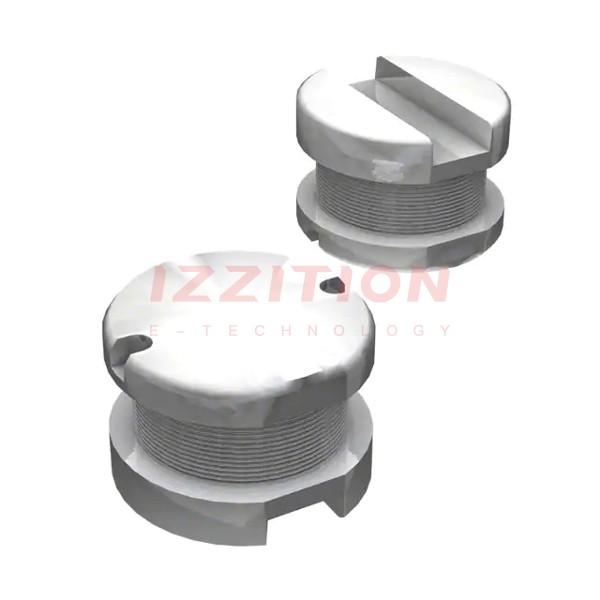

| Part Number | SDR0603-270ML | SDR0503-270ML | SDR0603-220ML |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 27 µH | 27 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 670 mA | 800 mA | 750 mA |
| Current - Saturation (Isat) | 860mA | 1A | 960mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 300mOhm Max | 320mOhm Max | 280mOhm Max |
| Q @ Freq | 19 @ 2.52MHz | 20 @ 2.52MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 19MHz | 20MHz | 30MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.154" (3.90mm) | 0.130" (3.30mm) | 0.154" (3.90mm) |
