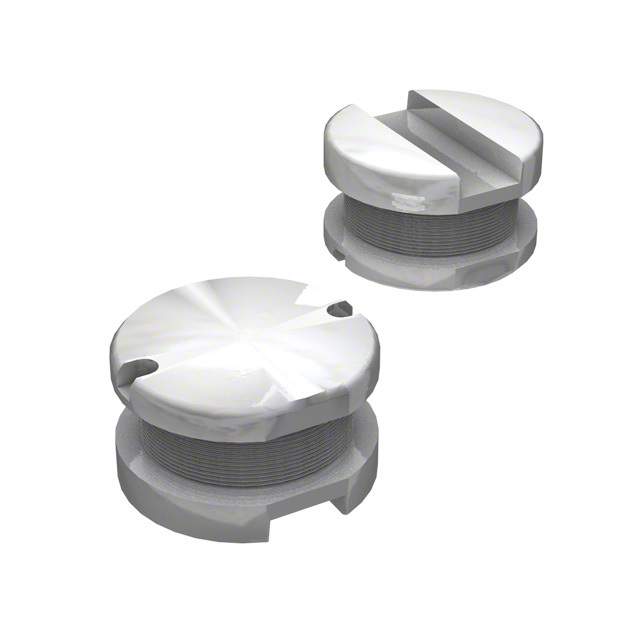

| Part Number | SDR0503-562JL | SDR0503-502JL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 5.6 mH | 5 mH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 38 mA | 39 mA |
| Current - Saturation (Isat) | 50mA | 50mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 72Ohm Max | 60Ohm Max |
| Q @ Freq | 40 @ 252kHz | 40 @ 252kHz |
| Frequency - Self Resonant | 1MHz | 1MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.197" L x 0.189" W (5.00mm x 4.80mm) |
| Height - Seated (Max) | 0.130" (3.30mm) | 0.130" (3.30mm) |
