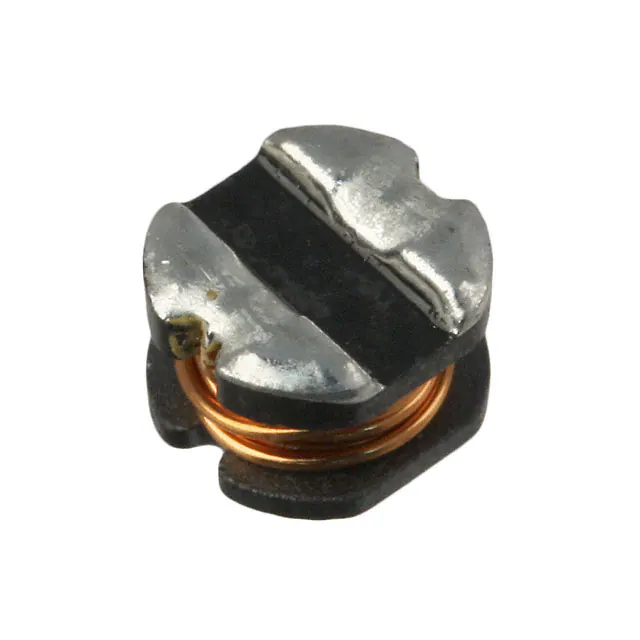

| Part Number | SDR0403-271KL | SDR0603-271KL | SDR0403-471KL | SDR0503-271KL | SDR0403-221KL | SDR0403-270KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 270 µH | 270 µH | 470 µH | 270 µH | 220 µH | 27 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 200 mA | 240 mA | 130 mA | 230 mA | 220 mA | 710 mA |
| Current - Saturation (Isat) | 300mA | 380mA | 190mA | 280mA | 330mA | 1A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 5Ohm Max | 2.4Ohm Max | 7Ohm Max | 2.9Ohm Max | 4.4Ohm Max | 520mOhm Max |
| Q @ Freq | 45 @ 796kHz | 26 @ 796kHz | 50 @ 796kHz | 35 @ 796kHz | 50 @ 796kHz | 23 @ 2.52MHz |
| Frequency - Self Resonant | 3MHz | 5MHz | 3MHz | 6MHz | 4MHz | 17MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.154" (3.90mm) | 0.138" (3.50mm) | 0.130" (3.30mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
