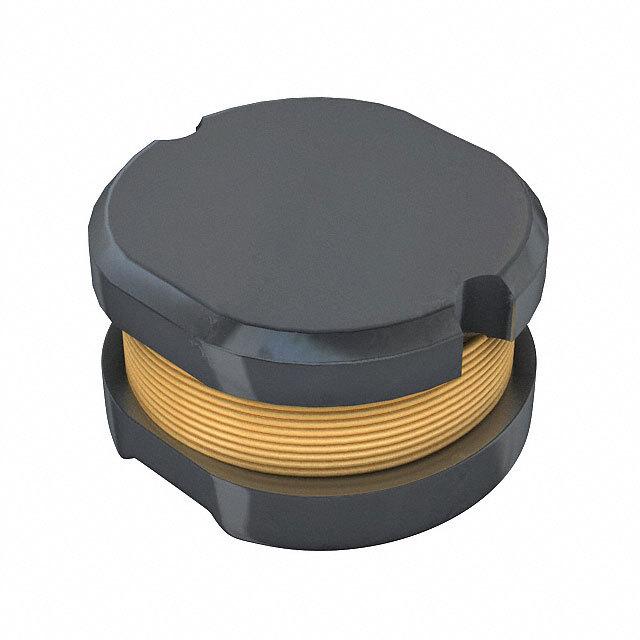

| Part Number | SDR0302-121KL | SDR0302-122KL | SDR0302-181KL | SDR0302-151KL | SDR0302-221KL | SDR0302-821KL | SDR0302-101KL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 1.2 mH | 180 µH | 150 µH | 220 µH | 820 µH | 100 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 220 mA | 60 mA | 185 mA | 200 mA | 170 mA | 80 mA | 260 mA |
| Current - Saturation (Isat) | 250mA | 80mA | 210mA | 230mA | 190mA | 100mA | 280mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.2Ohm Max | 30Ohm Max | 5Ohm Max | 4.6Ohm Max | 5.7Ohm Max | 22.5Ohm Max | 2.85Ohm Max |
| Q @ Freq | 40 @ 796kHz | 40 @ 252kHz | 45 @ 796kHz | 38 @ 796kHz | 40 @ 796kHz | 45 @ 796kHz | 40 @ 796kHz |
| Frequency - Self Resonant | 10MHz | 3MHz | 8.5MHz | 9MHz | 8MHz | 4MHz | 10MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
