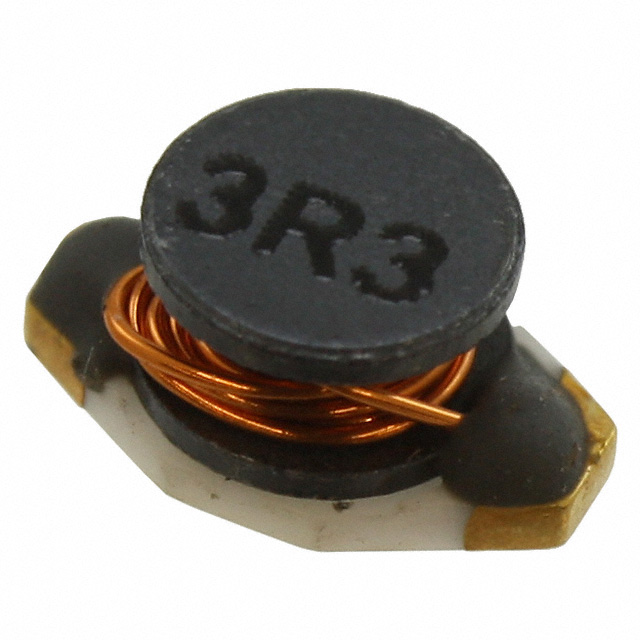

| Part Number | SDE6603-331M | SDE6603-330M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 330 µH | 33 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 160 mA | 600 mA |
| Current - Saturation (Isat) | 180mA | 580mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.8Ohm Max | 510mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 5MHz | 15MHz |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) | 0.115" (2.92mm) |
