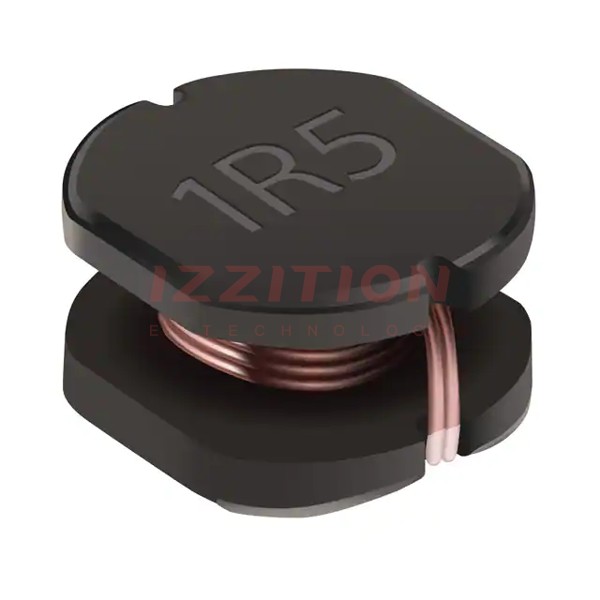

| Part Number | SDE1006A-391K | SDE1006A-331K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 390 µH | 330 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 650 mA | 700 mA |
| Current - Saturation (Isat) | 700mA | 750mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.3Ohm Max | 1.15Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 3.3MHz | 4.3MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" L x 0.354" W (10.00mm x 9.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) |
