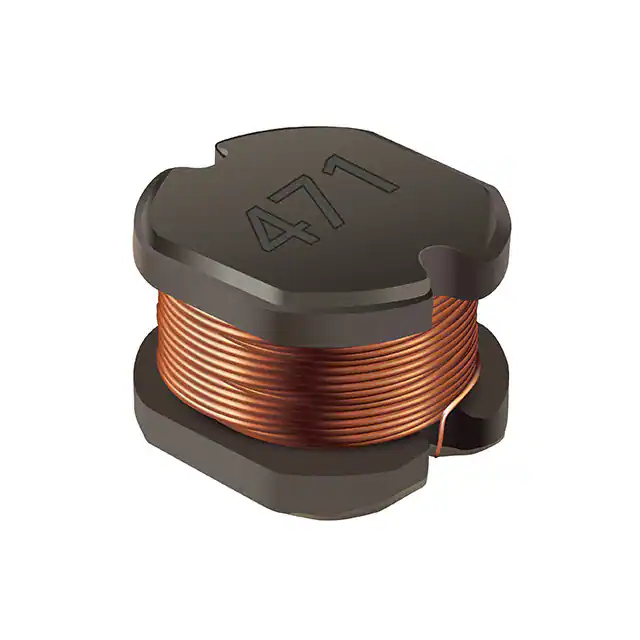

| Part Number | SDE0805A-470K | SDE0805A-471K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 47 µH | 470 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 1.7 A | 550 mA |
| Current - Saturation (Isat) | 1.4A | 400mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 180mOhm Max | 1.7Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 12.1MHz | 3.6MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) |
