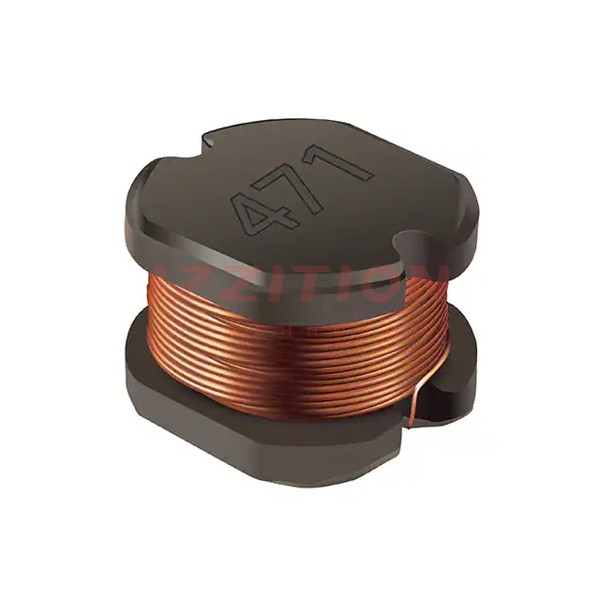

| Part Number | SDE0805A-1R5M | SDE0805A-2R5M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.5 µH | 2.5 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 5.8 A | 5 A |
| Current - Saturation (Isat) | 6.5A | 5A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 20mOhm Max | 27mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 115MHz | 71.2MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) |
