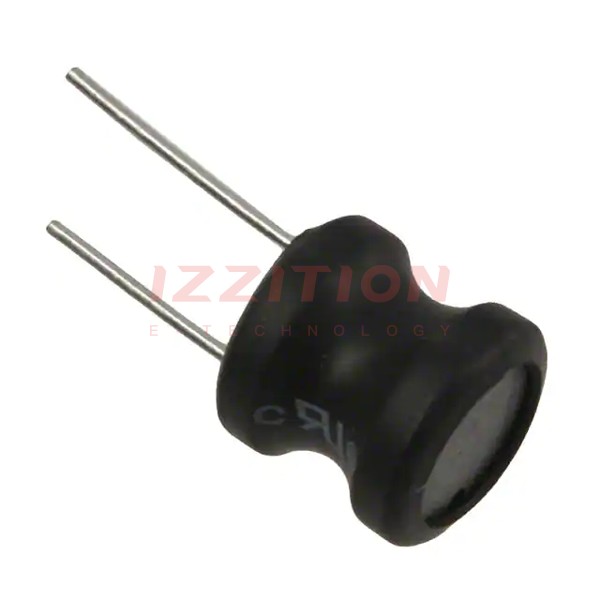

| Part Number | RLB1314-221KL | RLB1314-222KL | RLB1014-221KL | RLB1314-220KL |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 220 µH | 2.2 mH | 220 µH | 22 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 680 mA | 210 mA | 620 mA | 2.2 A |
| Current - Saturation (Isat) | - | - | 1.45A | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 250mOhm Max | 2.9Ohm Max | 1.3Ohm Max | 26mOhm Max |
| Q @ Freq | 40 @ 796kHz | 60 @ 252kHz | 40 @ 796kHz | 110 @ 2.52MHz |
| Frequency - Self Resonant | 3.4MHz | 1.1MHz | 2.1MHz | 14MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 796 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.461" Dia (11.70mm) | 0.461" Dia (11.70mm) | 0.343" Dia (8.70mm) | 0.461" Dia (11.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.472" (12.00mm) | 0.512" (13.00mm) |
