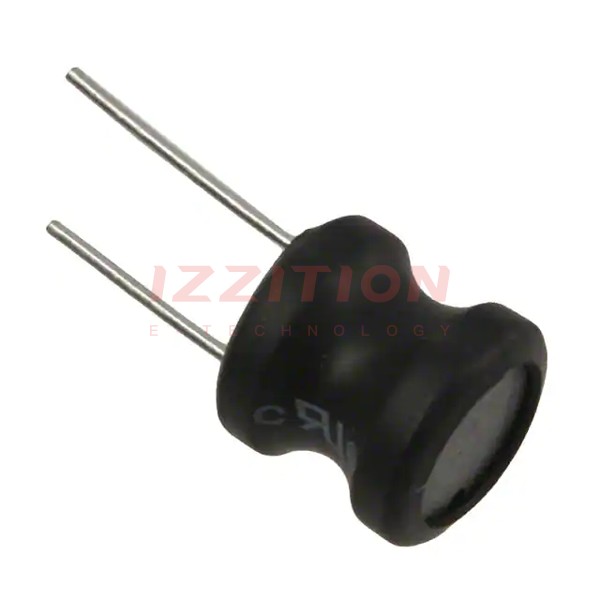

| Part Number | RLB1314-151KL | RLB1314-153KL | RLB1314-152KL | RLB1014-151KL | RLB1314-101KL |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 150 µH | 15 mH | 1.5 mH | 150 µH | 100 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 820 mA | 82 mA | 250 mA | 680 mA | 1 A |
| Current - Saturation (Isat) | - | - | - | 1.8A | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 200mOhm Max | 15Ohm Max | 1.7Ohm Max | 1.05Ohm Max | 120mOhm Max |
| Q @ Freq | 70 @ 796kHz | 70 @ 79.6kHz | 30 @ 252kHz | 45 @ 796kHz | 70 @ 796kHz |
| Frequency - Self Resonant | 4.3MHz | 410kHz | 1.3MHz | 2.8MHz | 5.4MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 796 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.461" Dia (11.70mm) | 0.461" Dia (11.70mm) | 0.461" Dia (11.70mm) | 0.343" Dia (8.70mm) | 0.461" Dia (11.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
