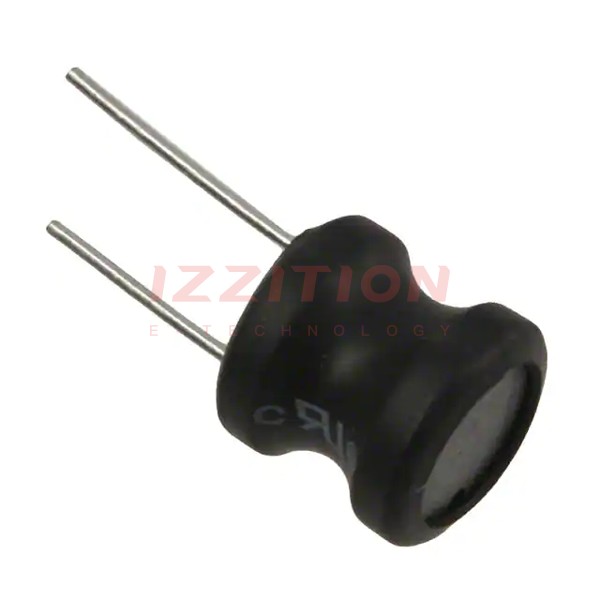

| Part Number | RLB1314-103KL | RLB1314-153KL | RLB1014-103KL | RLB1314-100KL | RLB1314-101KL | RLB1314-102KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 mH | 15 mH | 10 mH | 10 µH | 100 µH | 1 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 100 mA | 82 mA | 135 mA | 3.2 A | 1 A | 310 mA |
| Current - Saturation (Isat) | - | - | 145mA | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 12Ohm Max | 15Ohm Max | 32Ohm Max | 15mOhm Max | 120mOhm Max | 1.3Ohm Max |
| Q @ Freq | 80 @ 79.6kHz | 70 @ 79.6kHz | 50 @ 79.6kHz | 140 @ 2.52MHz | 70 @ 796kHz | 40 @ 252kHz |
| Frequency - Self Resonant | 530kHz | 410kHz | 300kHz | 26MHz | 5.4MHz | 1.6MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 79.6 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.461" Dia (11.70mm) | 0.461" Dia (11.70mm) | 0.343" Dia (8.70mm) | 0.461" Dia (11.70mm) | 0.461" Dia (11.70mm) | 0.461" Dia (11.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
