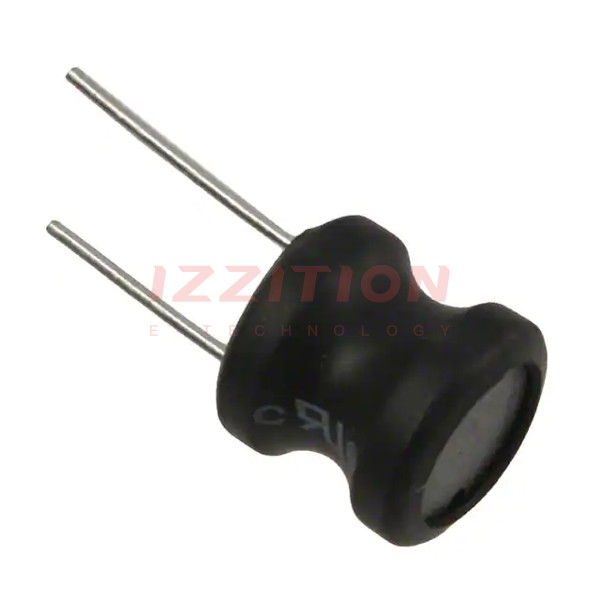

| Part Number | RLB1314-102K | RLB1314-102KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1 mH | 1 mH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 310 mA | 310 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.3Ohm Max | 1.3Ohm Max |
| Q @ Freq | 40 @ 252kHz | 40 @ 252kHz |
| Frequency - Self Resonant | 1.6MHz | 1.6MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.461" Dia (11.70mm) | 0.461" Dia (11.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) |
