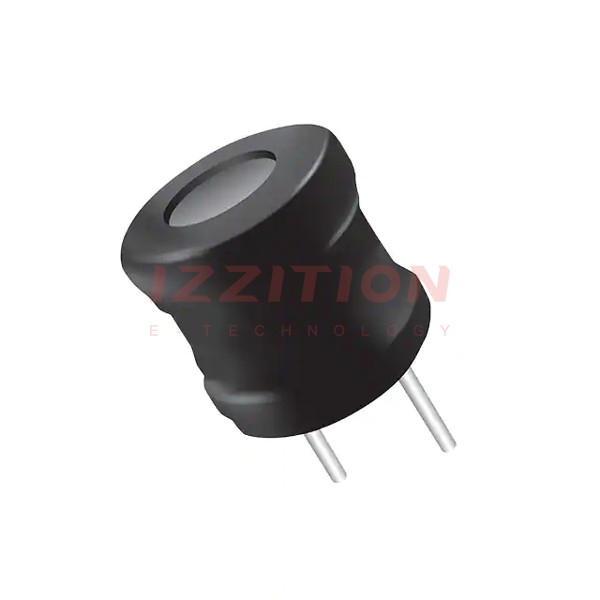

| Part Number | RLB1112V4-152J | RLB1112V4-102J |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.5 mH | 1 mH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 430 mA | 510 mA |
| Current - Saturation (Isat) | 380mA | 500mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.4Ohm Max | 1.4Ohm Max |
| Q @ Freq | 20 @ 252kHz | 20 @ 252kHz |
| Frequency - Self Resonant | 1.1MHz | 1.1MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.453" Dia (11.50mm) | 0.453" Dia (11.50mm) |
| Height - Seated (Max) | 0.532" (13.50mm) | 0.532" (13.50mm) |
