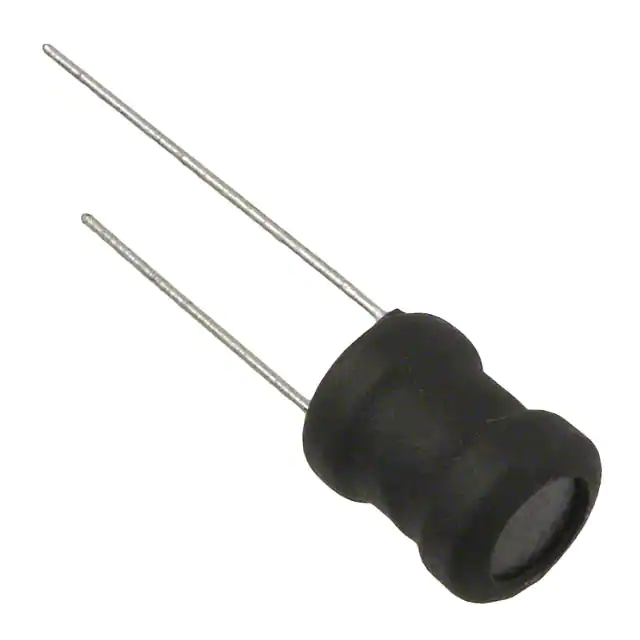

| Part Number | RLB1014-821KL | RLB1014-822KL | RLB1014-823KL | RLB1014-221KL |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 820 µH | 8.2 mH | 82 mH | 220 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 400 mA | 150 mA | 44 mA | 620 mA |
| Current - Saturation (Isat) | 800mA | 155mA | 52mA | 1.45A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.1Ohm Max | 24.5Ohm Max | 240Ohm Max | 1.3Ohm Max |
| Q @ Freq | 35 @ 796kHz | 40 @ 252kHz | 30 @ 79.6kHz | 40 @ 796kHz |
| Frequency - Self Resonant | 1MHz | 320kHz | 120kHz | 2.1MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 252 kHz | 79.6 kHz | 796 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.472" (12.00mm) |
