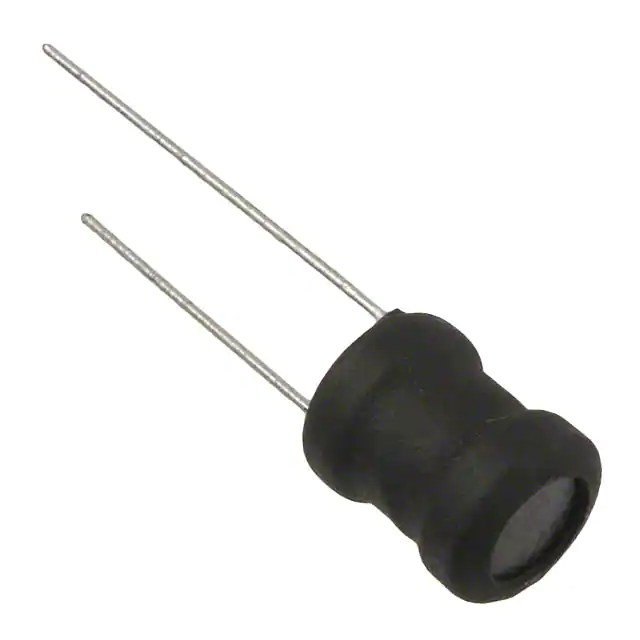

| Part Number | RLB1014-681KL | RLB1314-681KL | RLB1014-683KL |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 680 µH | 680 µH | 68 mH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 420 mA | 380 mA | 46 mA |
| Current - Saturation (Isat) | 850mA | - | 56mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.85Ohm Max | 790mOhm Max | 220Ohm Max |
| Q @ Freq | 35 @ 796kHz | 30 @ 796kHz | 35 @ 79.6kHz |
| Frequency - Self Resonant | 1.15MHz | 1.9MHz | 140kHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 1 kHz | 79.6 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.461" Dia (11.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.472" (12.00mm) |
