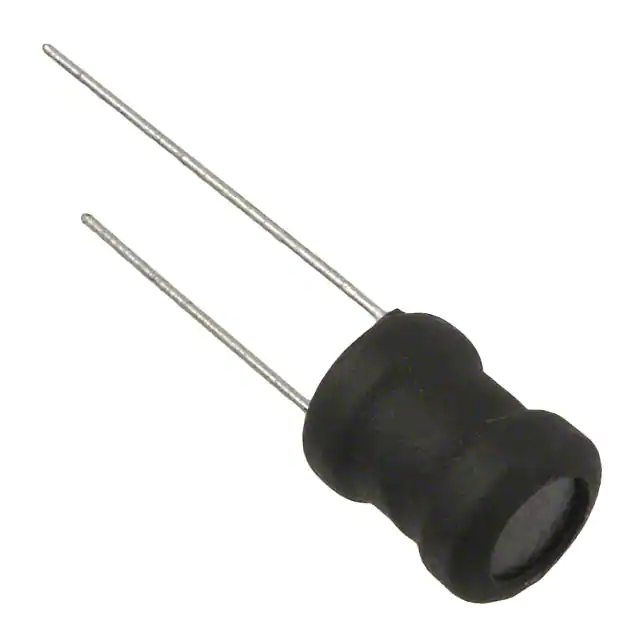

| Part Number | RLB1014-392KL | RLB1014-332KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.9 mH | 3.3 mH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 210 mA | 220 mA |
| Current - Saturation (Isat) | 210mA | 230mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 12Ohm Max | 10.5Ohm Max |
| Q @ Freq | 50 @ 252kHz | 50 @ 252kHz |
| Frequency - Self Resonant | 400kHz | 450kHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 252 kHz | 252 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) |
