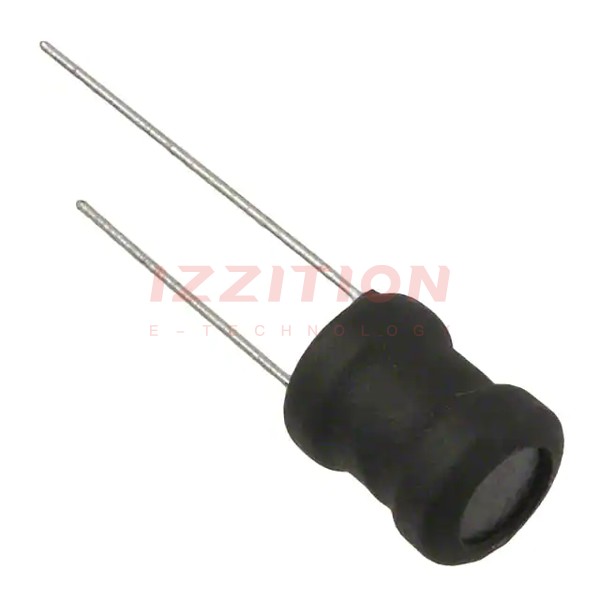

| Part Number | RLB1014-333KL | RLB1014-332KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 33 mH | 3.3 mH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 74 mA | 220 mA |
| Current - Saturation (Isat) | 75mA | 230mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 90Ohm Max | 10.5Ohm Max |
| Q @ Freq | 45 @ 79.6kHz | 50 @ 252kHz |
| Frequency - Self Resonant | 180kHz | 450kHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 79.6 kHz | 252 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) |
