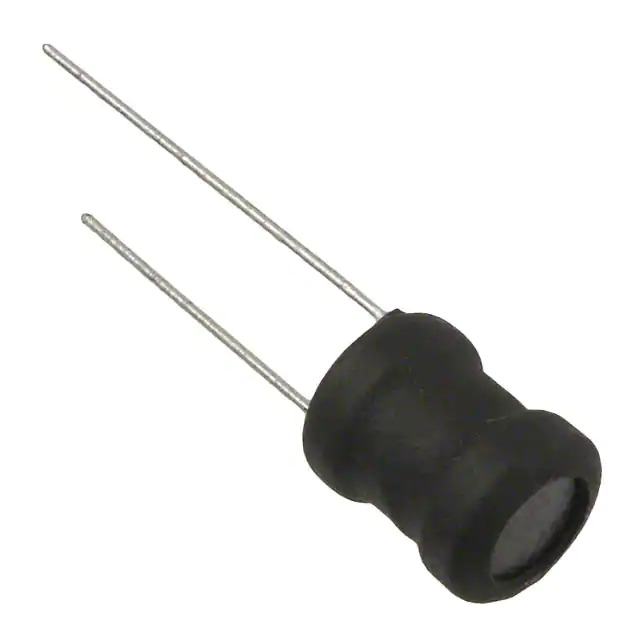

| Part Number | RLB1014-272KL | RLB1014-472KL | RLB1014-273KL | RLB1014-222KL |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.7 mH | 4.7 mH | 27 mH | 2.2 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 240 mA | 190 mA | 82 mA | 260 mA |
| Current - Saturation (Isat) | 250mA | 195mA | 85mA | 270mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 9.6Ohm Max | 14Ohm Max | 62Ohm Max | 8.4Ohm Max |
| Q @ Freq | 50 @ 252kHz | 45 @ 252kHz | 45 @ 79.6kHz | 50 @ 252kHz |
| Frequency - Self Resonant | 500kHz | 380kHz | 200kHz | 550kHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 252 kHz | 252 kHz | 79.6 kHz | 252 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.512" (13.00mm) |
