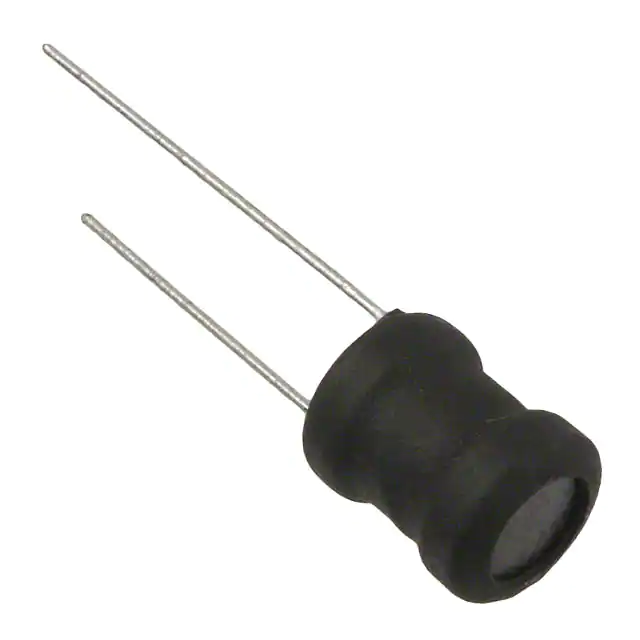

| Part Number | RLB1014-101KL | RLB1314-101KL | RLB1014-103KL | RLB1014-104KL | RLB1014-102KL | RLB1014-151KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 100 µH | 10 mH | 100 mH | 1 mH | 150 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 780 mA | 1 A | 135 mA | 40 mA | 360 mA | 680 mA |
| Current - Saturation (Isat) | 2A | - | 145mA | 40mA | 600mA | 1.8A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 850mOhm Max | 120mOhm Max | 32Ohm Max | 300Ohm Max | 4.1Ohm Max | 1.05Ohm Max |
| Q @ Freq | 45 @ 796kHz | 70 @ 796kHz | 50 @ 79.6kHz | 30 @ 79.6kHz | 50 @ 252kHz | 45 @ 796kHz |
| Frequency - Self Resonant | 3.2MHz | 5.4MHz | 300kHz | 100kHz | 900kHz | 2.8MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 1 kHz | 79.6 kHz | 79.6 kHz | 252 kHz | 796 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.461" Dia (11.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
