Please send RFQ , we will respond immediately.

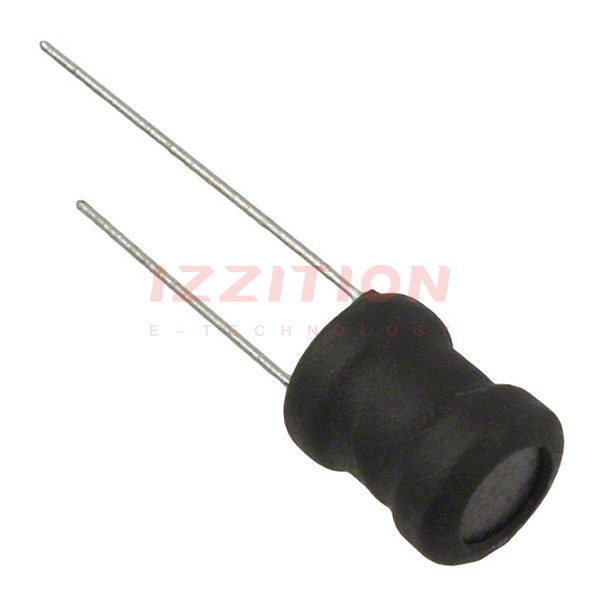

| Part Number | RLB0914-6R8ML | RLB0912-6R8ML |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3 A | 3.7 A |
| Current - Saturation (Isat) | 8.5A | 4.3A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 39mOhm Max | 28mOhm Max |
| Q @ Freq | 20 @ 7.96MHz | 30 @ 7.96MHz |
| Frequency - Self Resonant | 30MHz | 33MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.433" (11.00mm) |
