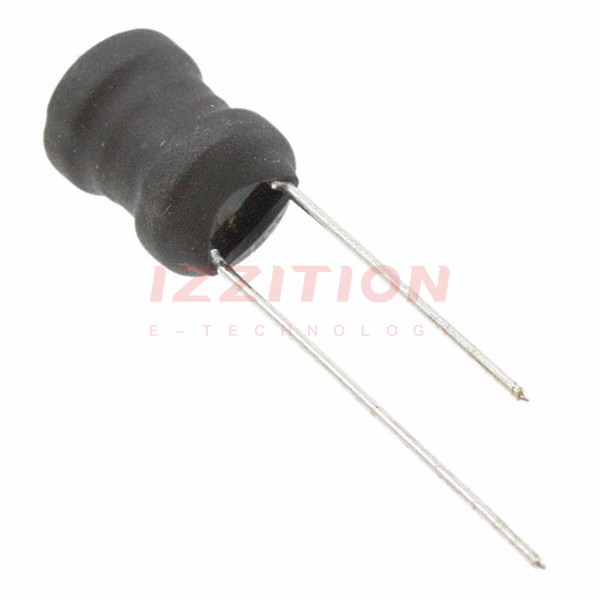

| Part Number | RLB0914-681KL | RLB0912-681KL | RLB0914-181KL | RLB0914-680KL |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 680 µH | 680 µH | 180 µH | 68 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 490 mA | 500 mA | 870 mA | 1.33 A |
| Current - Saturation (Isat) | 900mA | 420mA | 1.63A | 2.7A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.6Ohm Max | 2.3Ohm Max | 540mOhm Max | 210mOhm Max |
| Q @ Freq | 20 @ 796kHz | 25 @ 796kHz | 30 @ 796kHz | 30 @ 2.52MHz |
| Frequency - Self Resonant | 1.6MHz | 2.3MHz | 2.6MHz | 4.5MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 1 kHz | 796 kHz | 2.52 MHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.433" (11.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
