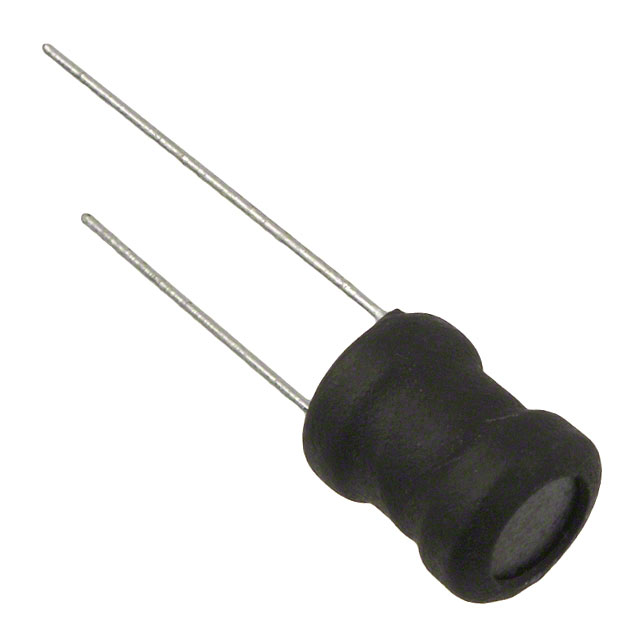

| Part Number | RLB0914-121KL | RLB0914-221KL | RLB0914-821KL | RLB0914-151KL | RLB0914-181KL | RLB0914-101KL | RLB0914-120KL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 220 µH | 820 µH | 150 µH | 180 µH | 100 µH | 12 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.05 A | 800 mA | 460 mA | 1 A | 870 mA | 1.1 A | 2.5 A |
| Current - Saturation (Isat) | 1.9A | 1.5A | 830mA | 1.8A | 1.63A | 2.1A | 6.2A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 320mOhm Max | 600mOhm Max | 1.8Ohm Max | 370mOhm Max | 540mOhm Max | 280mOhm Max | 55mOhm Max |
| Q @ Freq | 30 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz | 30 @ 796kHz | 30 @ 796kHz | 30 @ 796kHz | 50 @ 2.52MHz |
| Frequency - Self Resonant | 3MHz | 2.4MHz | 1.5MHz | 2.8MHz | 2.6MHz | 3.5MHz | 15MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
