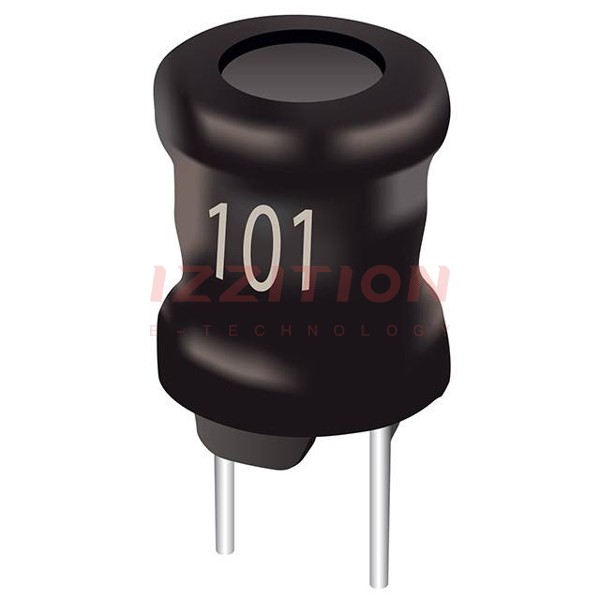

| Part Number | RLB0913-1R5K | RLB0913-1R0K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 5.75 A | 7.45 A |
| Current - Saturation (Isat) | 8.5A | 10A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 16mOhm | 13mOhm |
| Q @ Freq | 20 @ 7.96MHz | 20 @ 7.96MHz |
| Frequency - Self Resonant | 130MHz | 150MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) |
