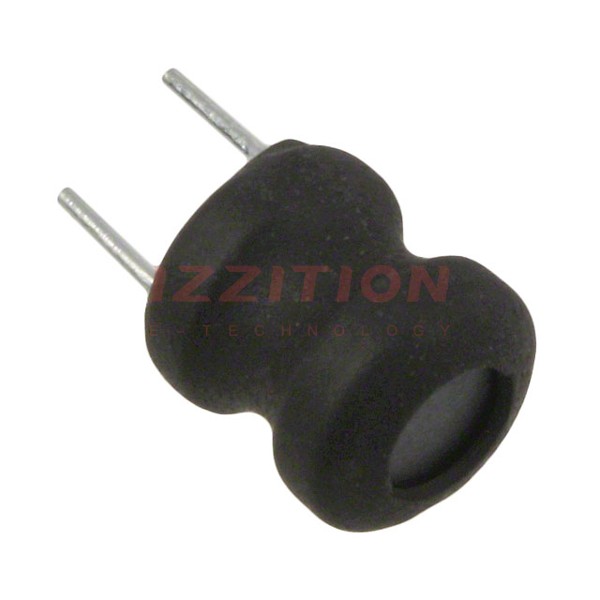

| Part Number | RLB0912-471KL | RLB0914-471KL | RLB0712-471KL | RLB0812-471KL | RLB0912-470KL |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 470 µH | 470 µH | 470 µH | 470 µH | 47 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 600 mA | 560 mA | 160 mA | 160 mA | 1.5 A |
| Current - Saturation (Isat) | 520mA | 1A | - | - | 1.7A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.7Ohm Max | 1.3Ohm Max | 1.5Ohm Max | 2Ohm Max | 170mOhm Max |
| Q @ Freq | 25 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz | 45 @ 796kHz | 40 @ 2.52MHz |
| Frequency - Self Resonant | 2.9MHz | 1.8MHz | 2MHz | 2.2MHz | 11MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 796 kHz | 1 kHz | 796 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.264" Dia (6.70mm) | 0.264" Dia (6.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.512" (13.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) |
