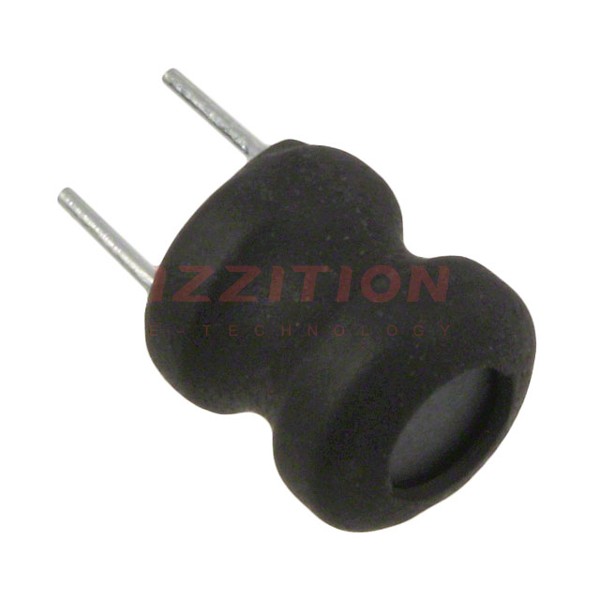

| Part Number | RLB0912-1R0ML | RLB0912-1R5ML |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 6 A | 6 A |
| Current - Saturation (Isat) | 8.1A | 8A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 10mOhm Max | 8mOhm Max |
| Q @ Freq | 30 @ 7.96MHz | 30 @ 7.96MHz |
| Frequency - Self Resonant | 88MHz | 78MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) |
