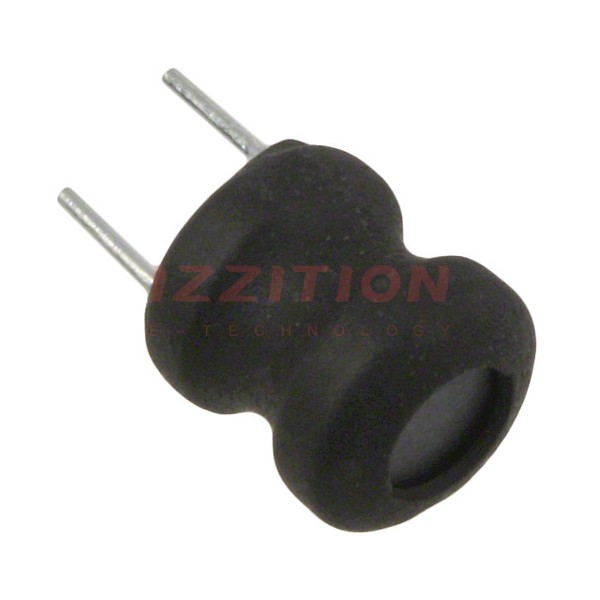

| Part Number | RLB0912-101KL | RLB0914-101KL | RLB0912-102KL | RLB0912-151KL | RLB0712-101KL | RLB0812-101KL | RLB0912-100KL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 100 µH | 1 mH | 150 µH | 100 µH | 100 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1 A | 1.1 A | 400 mA | 920 mA | 320 mA | 320 mA | 2.5 A |
| Current - Saturation (Isat) | 1.2A | 2.1A | 350mA | 1A | - | - | 3.6A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 330mOhm Max | 280mOhm Max | 4.3Ohm Max | 560mOhm Max | 400mOhm Max | 600mOhm Max | 43mOhm Max |
| Q @ Freq | 55 @ 796kHz | 30 @ 796kHz | 55 @ 252kHz | 40 @ 796kHz | 20 @ 796kHz | 45 @ 796kHz | 60 @ 2.52MHz |
| Frequency - Self Resonant | 7.2MHz | 3.5MHz | 1.9MHz | 5.7MHz | 4MHz | 4.2MHz | 27MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 796 kHz | 1 kHz | 1 kHz | 1 kHz | 796 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.264" Dia (6.70mm) | 0.264" Dia (6.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.512" (13.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) |
