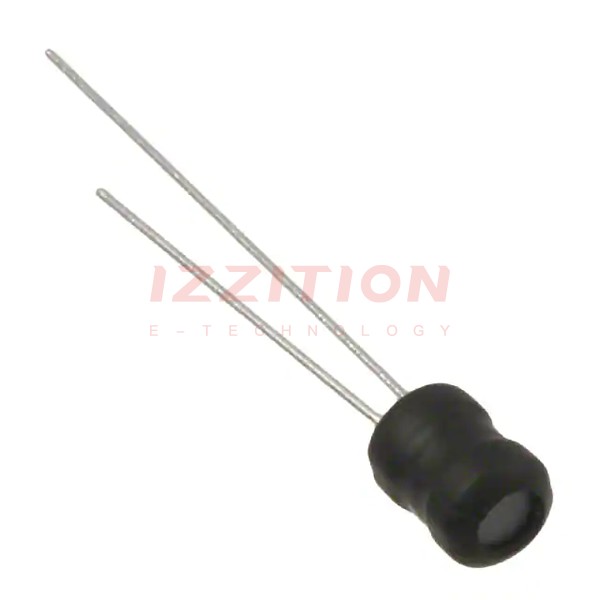

| Part Number | RLB0608-331KL | RLB0608-391KL | RLB0608-330KL |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 330 µH | 390 µH | 33 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 165 mA | 150 mA | 410 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4.68Ohm Max | 6Ohm Max | 850mOhm Max |
| Q @ Freq | 45 @ 796kHz | 45 @ 796kHz | 50 @ 2.52MHz |
| Frequency - Self Resonant | 3.3MHz | 3MHz | 8MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 796 kHz | 2.52 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
