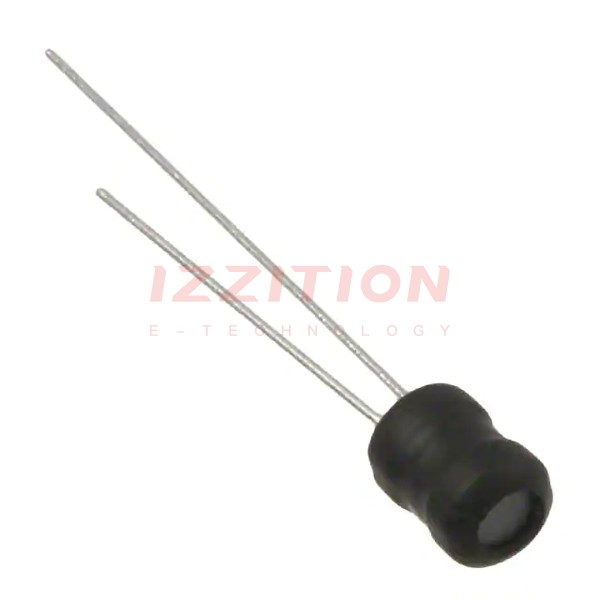

| Part Number | RLB0608-2R7ML | RLB0608-4R7ML | RLB0608-2R2ML |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 2.7 µH | 4.7 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 790 mA | 670 mA | 830 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 270mOhm Max | 350mOhm Max | 240mOhm Max |
| Q @ Freq | 60 @ 7.96MHz | 60 @ 7.96MHz | 60 @ 7.96MHz |
| Frequency - Self Resonant | 60MHz | 40MHz | 65MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
