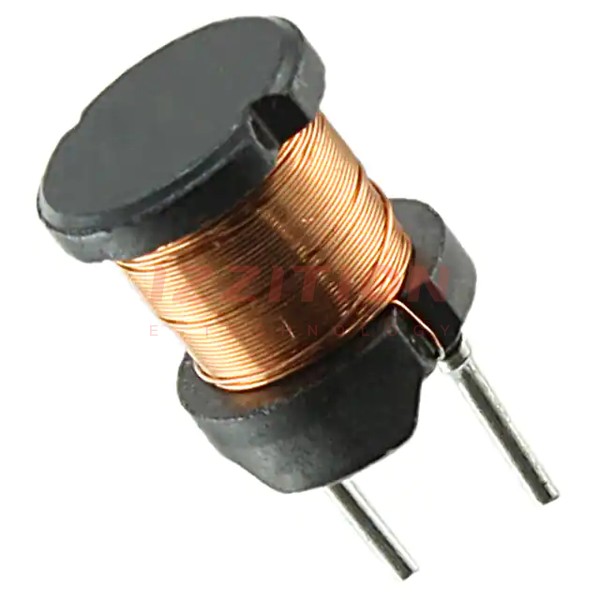

| Part Number | RL895-471K | RL895-472K | RL895-473K | RL895-271K | RL895-470K |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 470 µH | 4.7 mH | 47 mH | 270 µH | 47 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 430 mA | 130 mA | 38 mA | 570 mA | 1.3 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 890mOhm Max | 7.89Ohm Max | 96.4Ohm Max | 530mOhm Max | 100mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) |
