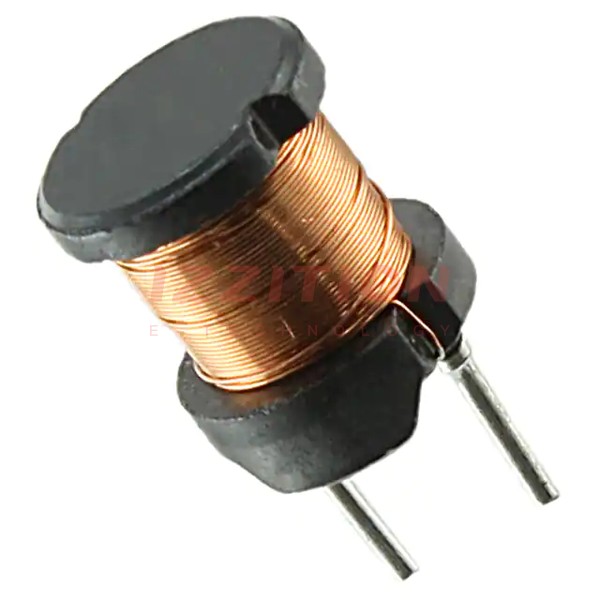

| Part Number | RL895-392K | RL895-393K | RL895-332K | RL895-390K | RL895-391K |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 3.9 mH | 39 mH | 3.3 mH | 39 µH | 390 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 140 mA | 42 mA | 150 mA | 1.4 A | 480 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 6.84Ohm Max | 74.2Ohm Max | 6.16Ohm Max | 80mOhm Max | 690mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 2.52 MHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) |
