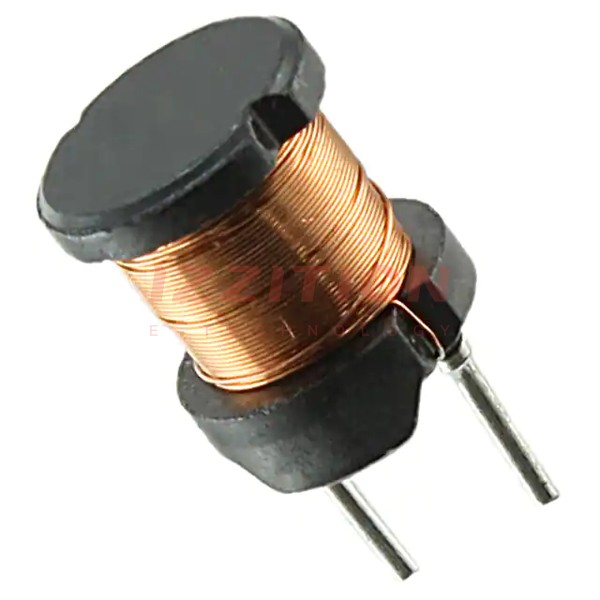

| Part Number | RL895-120M-RC | RL895-100M-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 12 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.6 A | 2.6 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 40mOhm Max | 40mOhm Max |
| Q @ Freq | 40 @ 2.52MHz | 40 @ 2.52MHz |
| Frequency - Self Resonant | 13MHz | 14MHz |
| Ratings | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.374" (9.50mm) | 0.374" (9.50mm) |
