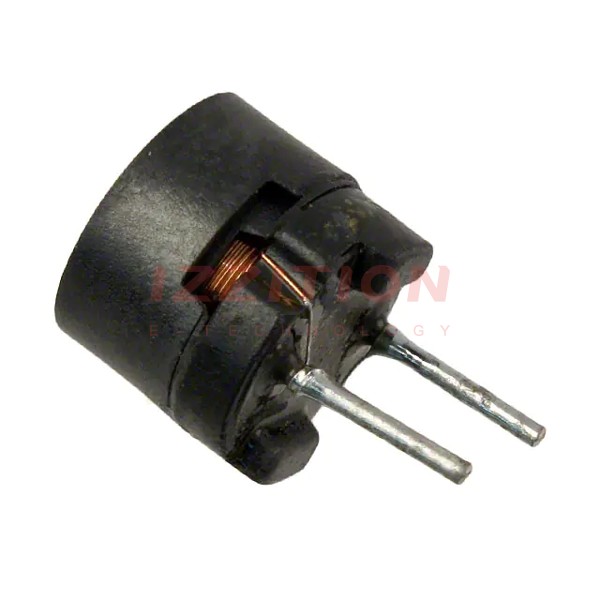

| Part Number | RL875S-391K-RC | RL875S-392K-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 390 µH | 3.9 mH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 370 mA | 120 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.28Ohm Max | 12.9Ohm Max |
| Q @ Freq | 50 @ 796kHz | 95 @ 252kHz |
| Frequency - Self Resonant | 3.5MHz | 1MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) |
