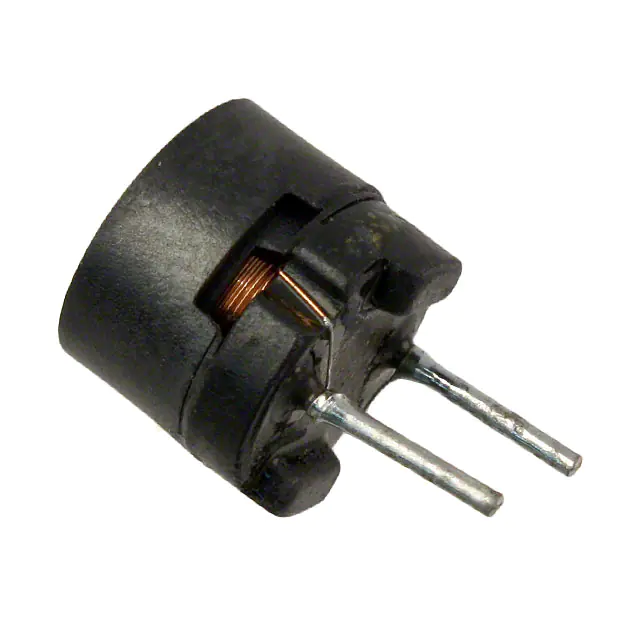

| Part Number | RL875S-390L-RC | RL875S-330L-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 39 µH | 33 µH |
| Tolerance | ±15% | ±15% |
| Current Rating (Amps) | 1.2 A | 1.3 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 150mOhm Max | 140mOhm Max |
| Q @ Freq | 30 @ 2.52MHz | 35 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz | 13.5MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) |
