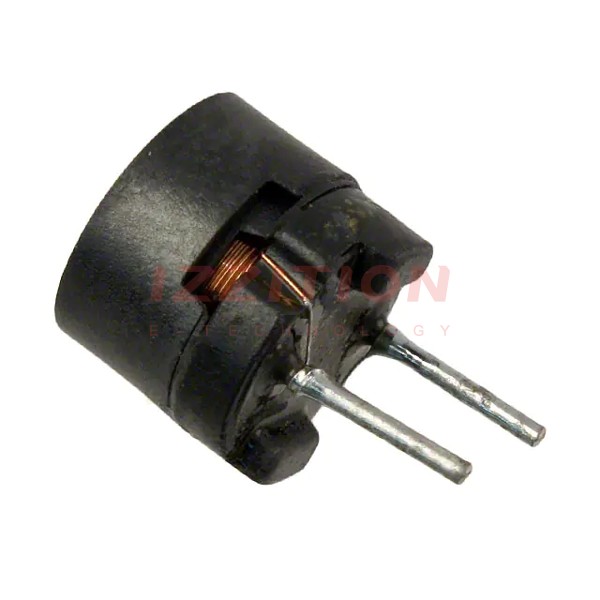

| Part Number | RL875S-332K | RL875S-392K | RL875-332K | RL875S-331K |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 3.3 mH | 3.9 mH | 3.3 mH | 330 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 130 mA | 120 mA | 150 mA | 410 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Unshielded | Shielded |
| DC Resistance (DCR) | 9.74Ohm Max | 12.9Ohm Max | 10.6Ohm Max | 970mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.217" (5.50mm) | 0.295" (7.50mm) |
