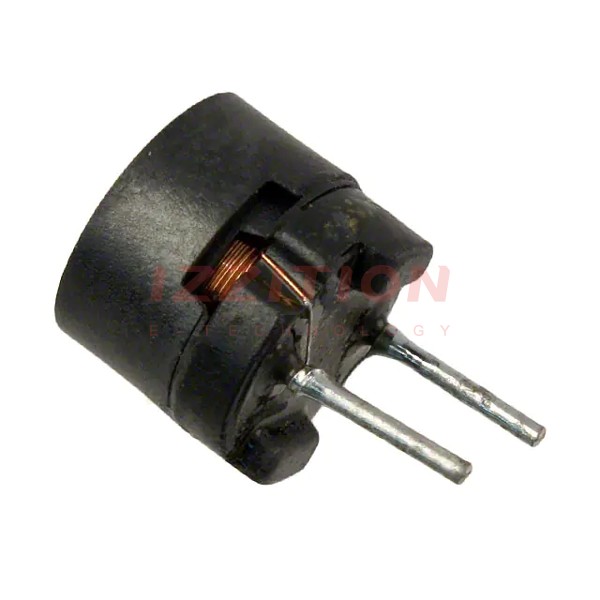

| Part Number | RL875S-331K | RL875S-332K | RL875S-391K | RL875-331K |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 330 µH | 3.3 mH | 390 µH | 330 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 410 mA | 130 mA | 370 mA | 460 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Unshielded |
| DC Resistance (DCR) | 970mOhm Max | 9.74Ohm Max | 1.28Ohm Max | 1.05Ohm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.217" (5.50mm) |
