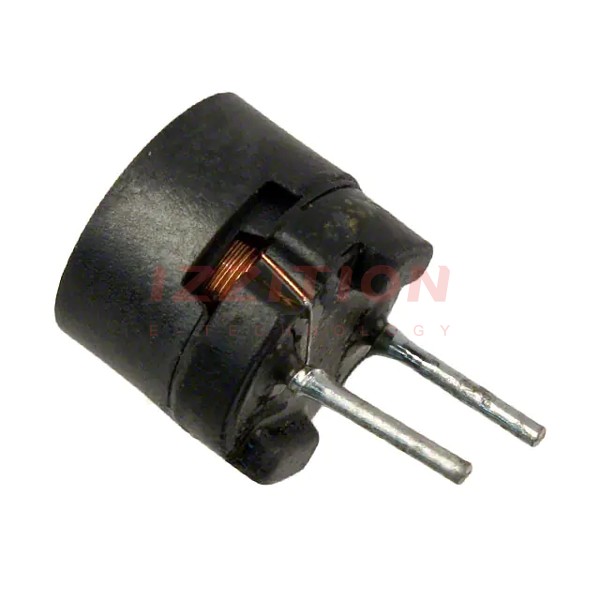

| Part Number | RL875S-222K-RC | RL875S-272K-RC | RL875S-822K-RC | RL875-222K-RC | RL875S-221K-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 mH | 2.7 mH | 8.2 mH | 2.2 mH | 220 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 160 mA | 140 mA | 81 mA | 180 mA | 500 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Unshielded | Shielded |
| DC Resistance (DCR) | 7.56Ohm Max | 8.54Ohm Max | 30.6Ohm Max | 6.25Ohm Max | 760mOhm Max |
| Q @ Freq | 110 @ 252kHz | 95 @ 252kHz | 85 @ 252kHz | 35 @ 252kHz | 60 @ 796kHz |
| Frequency - Self Resonant | 1MHz | 1MHz | 500kHz | 1.5MHz | 5.5MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -30°C ~ 100°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.49mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
