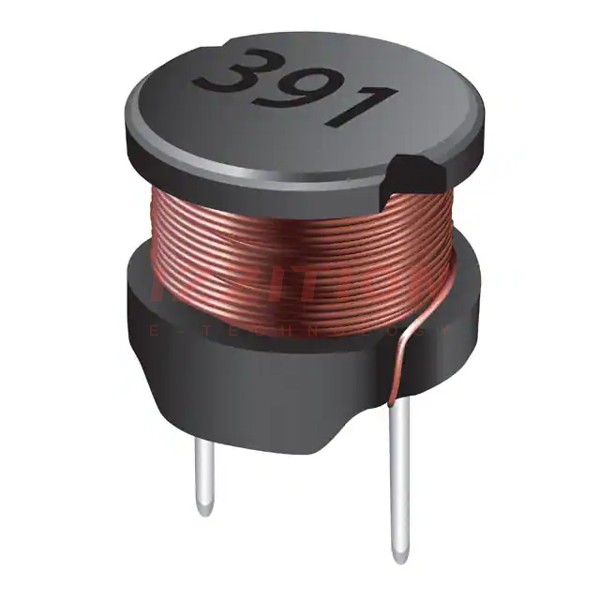

| Part Number | RL875-820K-RC | RL875-821K-RC | RL875-822K-RC | RL875S-820K-RC | RL875-220K-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 82 µH | 820 µH | 8.2 mH | 82 µH | 22 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1 A | 300 mA | 93 mA | 810 mA | 1.8 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Shielded | Unshielded |
| DC Resistance (DCR) | 240mOhm Max | 2.56Ohm Max | 28.7Ohm Max | 270mOhm Max | 90mOhm Max |
| Q @ Freq | 20 @ 2.52MHz | 20 @ 796kHz | 32 @ 252kHz | 28 @ 2.52MHz | 30 @ 2.52MHz |
| Frequency - Self Resonant | 8MHz | 2.5MHz | 500kHz | 9MHz | 14MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 1 kHz | 1 kHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
