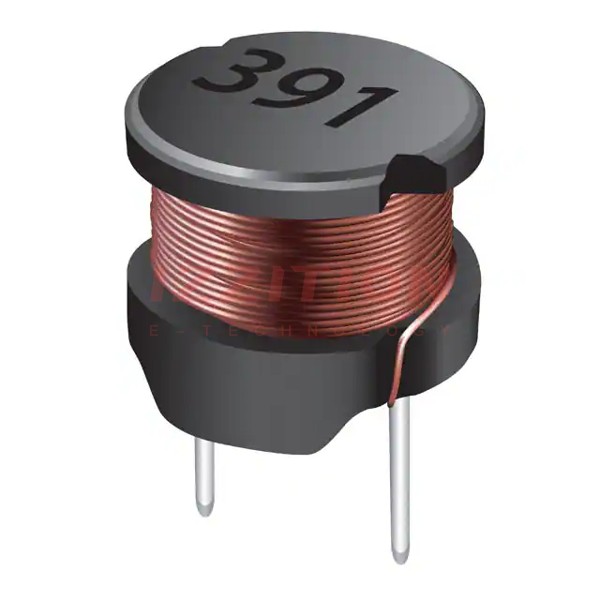

| Part Number | RL875-222K-RC | RL875S-222K-RC | RL875-272K-RC | RL875-822K-RC | RL855-222K-RC | RL875-220K-RC | RL875-221K-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 mH | 2.2 mH | 2.7 mH | 8.2 mH | 2.2 mH | 22 µH | 220 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 180 mA | 160 mA | 160 mA | 93 mA | 180 mA | 1.8 A | 570 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Shielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 6.25Ohm Max | 7.56Ohm Max | 8.72Ohm Max | 28.7Ohm Max | 11.1Ohm Max | 90mOhm Max | 630mOhm Max |
| Q @ Freq | 35 @ 252kHz | 110 @ 252kHz | 35 @ 252kHz | 32 @ 252kHz | 80 @ 250kHz | 30 @ 2.52MHz | 18 @ 796kHz |
| Frequency - Self Resonant | 1.5MHz | 1MHz | 1.5MHz | 500kHz | 950kHz | 14MHz | 5MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -30°C ~ 100°C | -40°C ~ 105°C | -40°C ~ 105°C | -30°C ~ 100°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 2.52 MHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.49mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.217" (5.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
