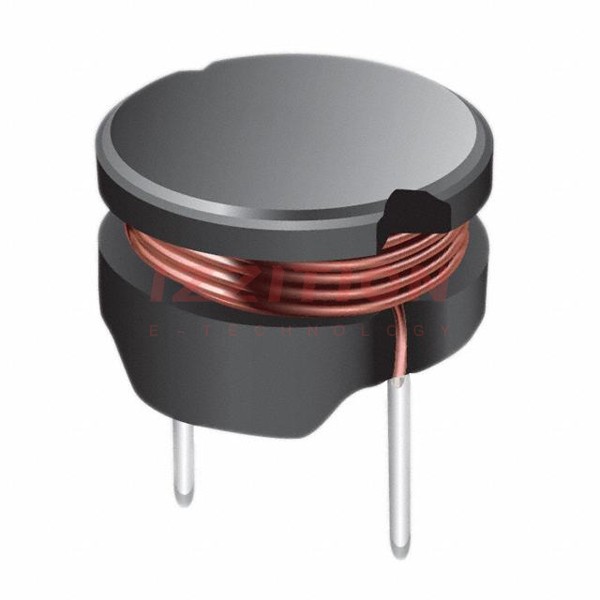

| Part Number | RL855-562K-RC | RL855-561K-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 5.6 mH | 560 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 110 mA | 350 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 26.8Ohm Max | 2.83Ohm Max |
| Q @ Freq | 80 @ 250kHz | 20 @ 790kHz |
| Frequency - Self Resonant | 550kHz | 2.5MHz |
| Ratings | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) |
