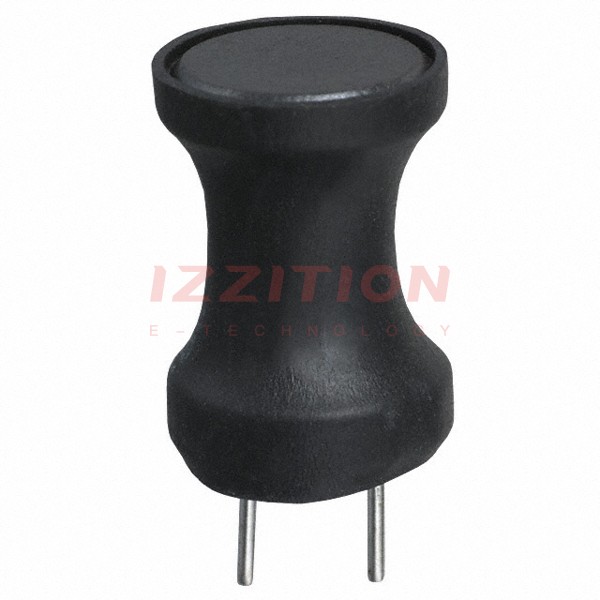

| Part Number | RL824-680K-RC | RL824-681K-RC | RL822-680K-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 68 µH | 680 µH | 68 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.2 A | 440 mA | 700 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 130mOhm Max | 790mOhm Max | 220mOhm Max |
| Q @ Freq | 58 @ 2.5MHz | 26 @ 790kHz | 30 @ 2.52MHz |
| Frequency - Self Resonant | 3.9MHz | 1.1MHz | 4.9MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.433" (11.00mm) |
