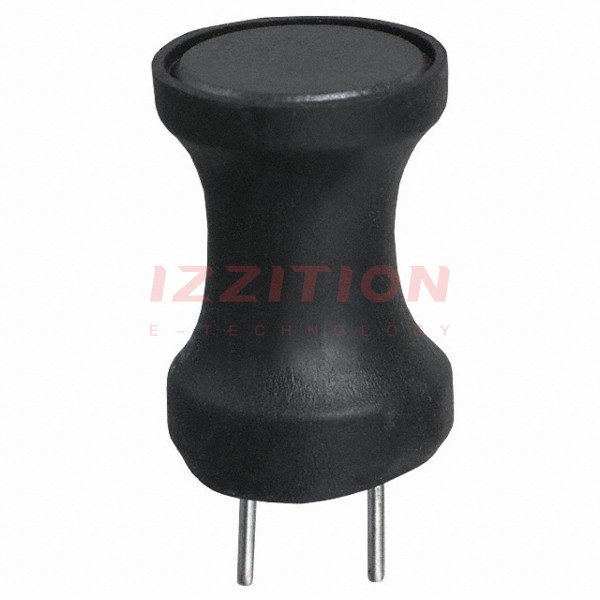

| Part Number | RL824-121K-RC | RL824-221K-RC | RL824-151K-RC | RL824-821K-RC | RL824-122K-RC | RL824-101K-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 220 µH | 150 µH | 820 µH | 1.2 mH | 100 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 940 mA | 820 mA | 920 mA | 400 mA | 280 mA | 1.02 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 190mOhm Max | 280mOhm Max | 220mOhm Max | 860mOhm Max | 1.8Ohm Max | 180mOhm Max |
| Q @ Freq | 58 @ 790kHz | 35 @ 790kHz | 58 @ 790kHz | 26 @ 790kHz | 45 @ 250kHz | 58 @ 790kHz |
| Frequency - Self Resonant | 2.6MHz | 1.9MHz | 2.2MHz | 1MHz | 830kHz | 2.8MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.610" (15.50mm) |
