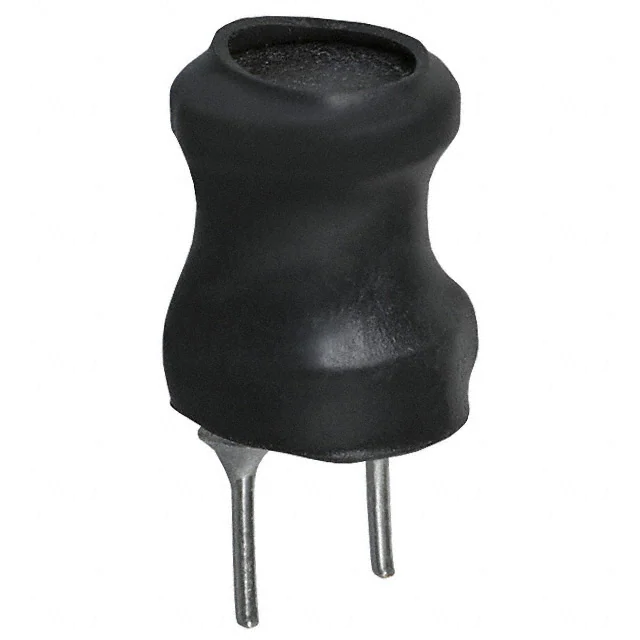

Part Number | RL822-821K-RC | RL824-821K-RC | RL622-821K-RC | RL822-221K-RC |
---|---|---|---|---|
Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
Product Status | Active | Active | Active | Active |
Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
Inductance | 820 µH | 820 µH | 820 µH | 220 µH |
Tolerance | ±10% | ±10% | ±10% | ±10% |
Current Rating (Amps) | 180 mA | 400 mA | 380 mA | 380 mA |
Current - Saturation (Isat) | - | - | - | - |
Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
DC Resistance (DCR) | 2.7Ohm Max | 860mOhm Max | 1.8Ohm Max | 680mOhm Max |
Q @ Freq | 20 @ 796kHz | 26 @ 790kHz | 20 @ 796kHz | 20 @ 796kHz |
Frequency - Self Resonant | 1.5MHz | 1MHz | 1.5MHz | 2.7MHz |
Ratings | - | - | - | - |
Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
Inductance Frequency - Test | 1 kHz | 1 kHz | 796 kHz | 1 kHz |
Features | - | - | - | - |
Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
Supplier Device Package | - | - | - | - |
Size / Dimension | 0.335" Dia (8.50mm) | 0.413" Dia (10.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) |
Height - Seated (Max) | 0.433" (11.00mm) | 0.610" (15.50mm) | 0.433" (11.00mm) | 0.433" (11.00mm) |
