RL822-560K-RC
  • Share:

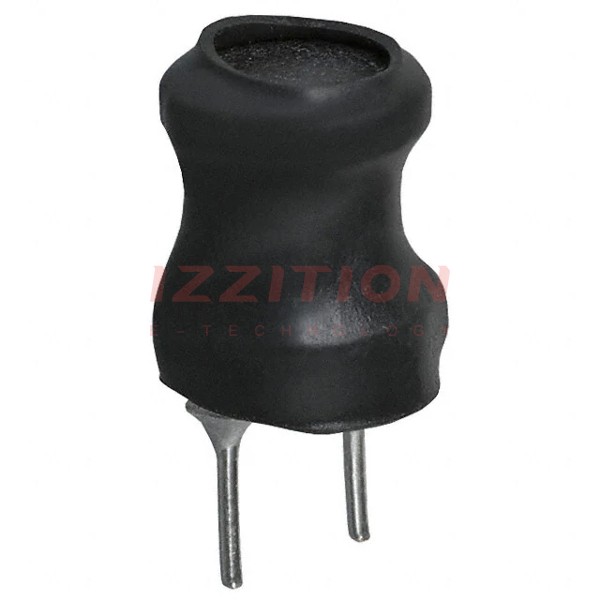

Bourns Inc. RL822-560K-RC

Manufacturer No:
RL822-560K-RC
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
RL822-560K-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 56UH 760MA 200 MOHM TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±10%
Current Rating (Amps):760 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):200mOhm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:5.4MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.335" Dia (8.50mm)
Height - Seated (Max):0.433" (11.00mm)
0 Remaining View Similar

In Stock

$0.51
1,327

Please send RFQ , we will respond immediately.

Similar Products

Part Number RL822-560K-RC RL822-561K-RC   RL622-560K-RC
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite
Inductance 56 µH 560 µH 56 µH
Tolerance ±10% ±10% ±10%
Current Rating (Amps) 760 mA 230 mA 1.3 A
Current - Saturation (Isat) - - -
Shielding Unshielded Unshielded Unshielded
DC Resistance (DCR) 200mOhm Max 1.53Ohm Max 180mOhm Max
Q @ Freq 30 @ 2.52MHz 20 @ 796kHz 30 @ 2.52MHz
Frequency - Self Resonant 5.4MHz 1.8MHz 5.4MHz
Ratings - - -
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Inductance Frequency - Test 1 kHz 1 kHz 2.52 MHz
Features - - -
Mounting Type Through Hole Through Hole Through Hole
Package / Case Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder
Supplier Device Package - - -
Size / Dimension 0.335" Dia (8.50mm) 0.335" Dia (8.50mm) 0.335" Dia (8.50mm)
Height - Seated (Max) 0.433" (11.00mm) 0.433" (11.00mm) 0.433" (11.00mm)
