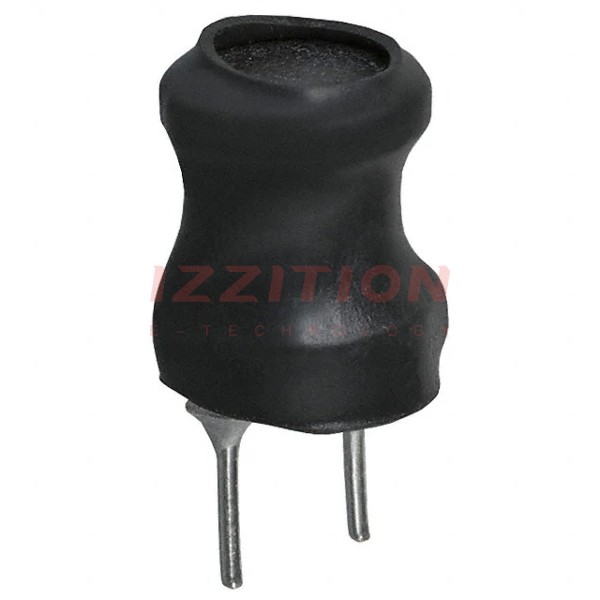

| Part Number | RL822-3R3K-RC | RL622-3R3K-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 2.66 A | 5.5 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 25mOhm Max | 25mOhm Max |
| Q @ Freq | 20 @ 7.96MHz | 20 @ 7.96MHz |
| Frequency - Self Resonant | 79MHz | 79MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) |
